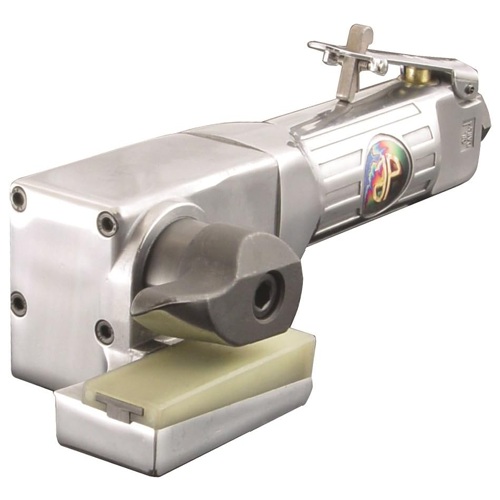

Astro DS1000 Pneumatic Door Skinning Tool

Astro DS1000 Pneumatic Door Skinning Tool

The Astro DS1000 Door Skinning Tool revolutionizes door‑skin installation by replacing hammer‑and‑dolly work with a fast, one‑pass pneumatic solution. Instead of laborious hand tools, this air‑powered tool folds and crimps sheet‑metal door skins neatly and evenly. Therefore, you spend less time and get factory‑like results.

You simply align the skin flange and squeeze the trigger. The forged, hardened steel crimping head rolls the flange over smoothly. Meanwhile, an adjustable nylon anvil pad supports the metal and prevents panel distortion or external damage. Because of this design, the tool handles inside and outside curves as well as complex body lines reliably.

At just about 8.25 inches long and 3 lbs in weight, the DS1000 remains light enough for one‑handed operation. The compact build and balanced torque make it easy to maneuver around tight door frames and hinges.  The tool works with steel and aluminum skins and adjusts for different flange thicknesses. Simply loosen two screws, slide the nylon seat, and re‑tighten — that’s it.

Air requirement stays sensible: ½ hp motor, about 5 cfm at ~90 psi. This keeps air consumption low while delivering enough force for clean folding. Because it works faster than hand tools and avoids warping, the DS1000 helps reduce labor cost and time significantly.

Many body shops praise how the DS1000 saves hours compared to conventional methods. They report consistent factory‑quality seams, even on complex doors.  As a result, this pneumatic tool becomes a must‑have for collision repair, restoration work, and professional door replacement.

Overall, if you want fast, safe, and professional door‑skin installation, Astro Pneumatic DS1000 delivers. It ensures clean folds, reduces risk of metal distortion, speeds up work, and improves output quality — all with one hand and a simple trigger pull.
